The batteries in my scooter are 12v 20 Amp there are 5 of them. I also need diagram for wiring them right

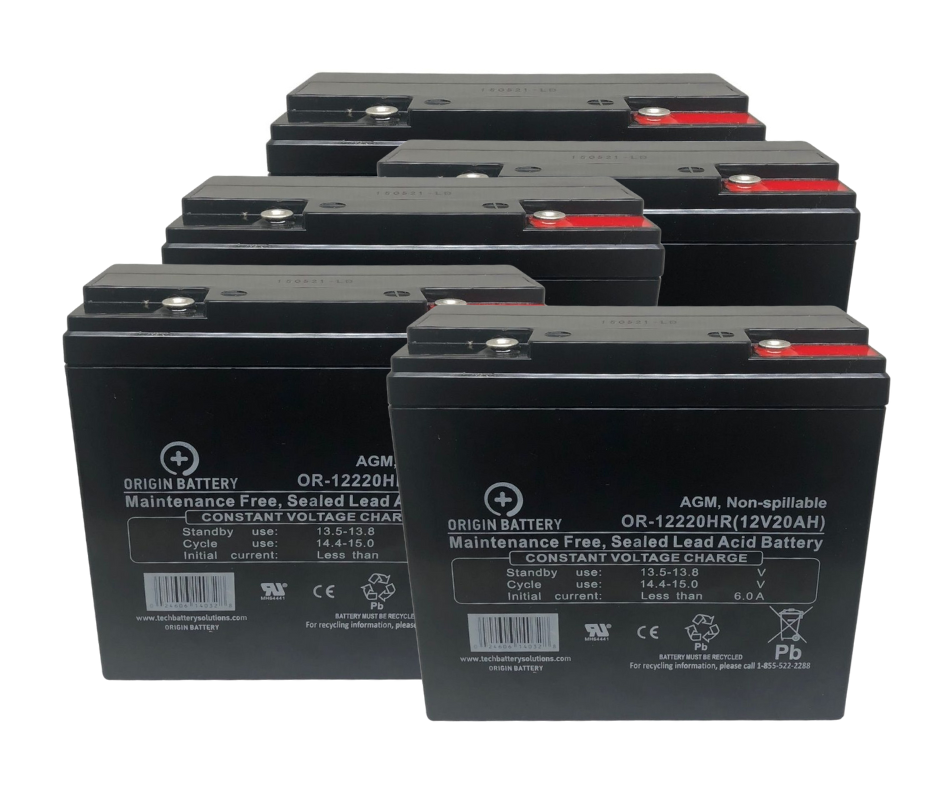

60V, 20AH Electric Mobility Scooter Battery Kit
My scooter is a szoux. I need 5 12v 20amp
Status:
Open May 20, 2025 - 09:05 PM
Electric Scooter
1answer
Answer
May 21, 2025 - 02:40 AM
While this is the correct battery kit for your scooter, I unfortunately don't have a wiring diagram for that model. What I can tell you is it's going to be a series style connection, so it'll be positive to negative, positive to negative, throughout the battery pack itself in order to combine all of them together to create that 60-volt setup. What I recommend is taking a picture of your existing batteries in there so you can note the current wiring diagram that you have and how the batteries are placed in the scooter.
View More Product Details
60V, 20AH Electric Mobility Scooter Battery Kit
60V, 20AH Electric Mobility Scooter Battery Kit This battery replacement kit comes with five (5) 12V 20AH batteries needed in order to replace the depleted set within your electric scooter, together, the units make a single 60V connection needed to properly power your mobility scooter. These ...
